Product Details
＋Product Overview

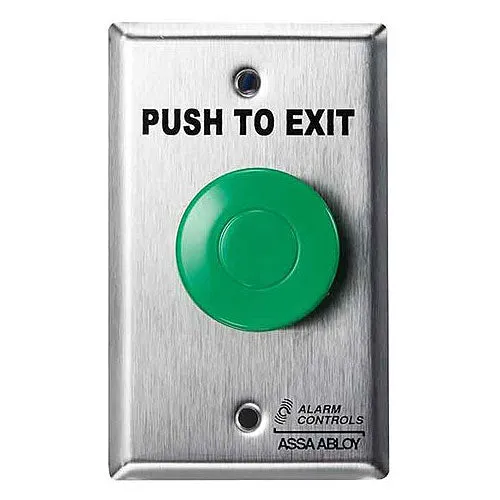

The TS-14 request to exit station with pneumatic timer and push button, provides a convenient way to keep the door unlocked for a specified amount of time, allowing for easy entry or egress. The door will relock when the relay time has expired.
Main Features
- Switch mounted on single gang wall plate with 430 stainless steel finish
- 1-1/2" green mushroom push button
- Plate screened “PUSH TO EXIT” for easy to follow egress instructions
- Pneumatic time delay is adjustable 2 to 60 seconds
- Does not require external power for operation
- Certifications & Listings:UL 294 listed
- Operating Temperature: 15 to 120F (-9 to 49C)
Specs
- One N/O and one N/C contact pair
- Contacts rated 10A at 120 VDC
- Switch depth behind plate: 2-1/4"
- Switch time repeatable /- 10%
- Switch terminated with 10” colored leads
General Information
Name: Alarm Controls TS-14 Push Button, ASSA ABLOY, Alarm Controls
Category: Alarm Controls Corporation, Access Control & Communications, Locking Devices, Exit Devices & Push Buttons
UPC Code: 604840970143
Country of origin: United States. Country of origin is subject to change.
